Boeing

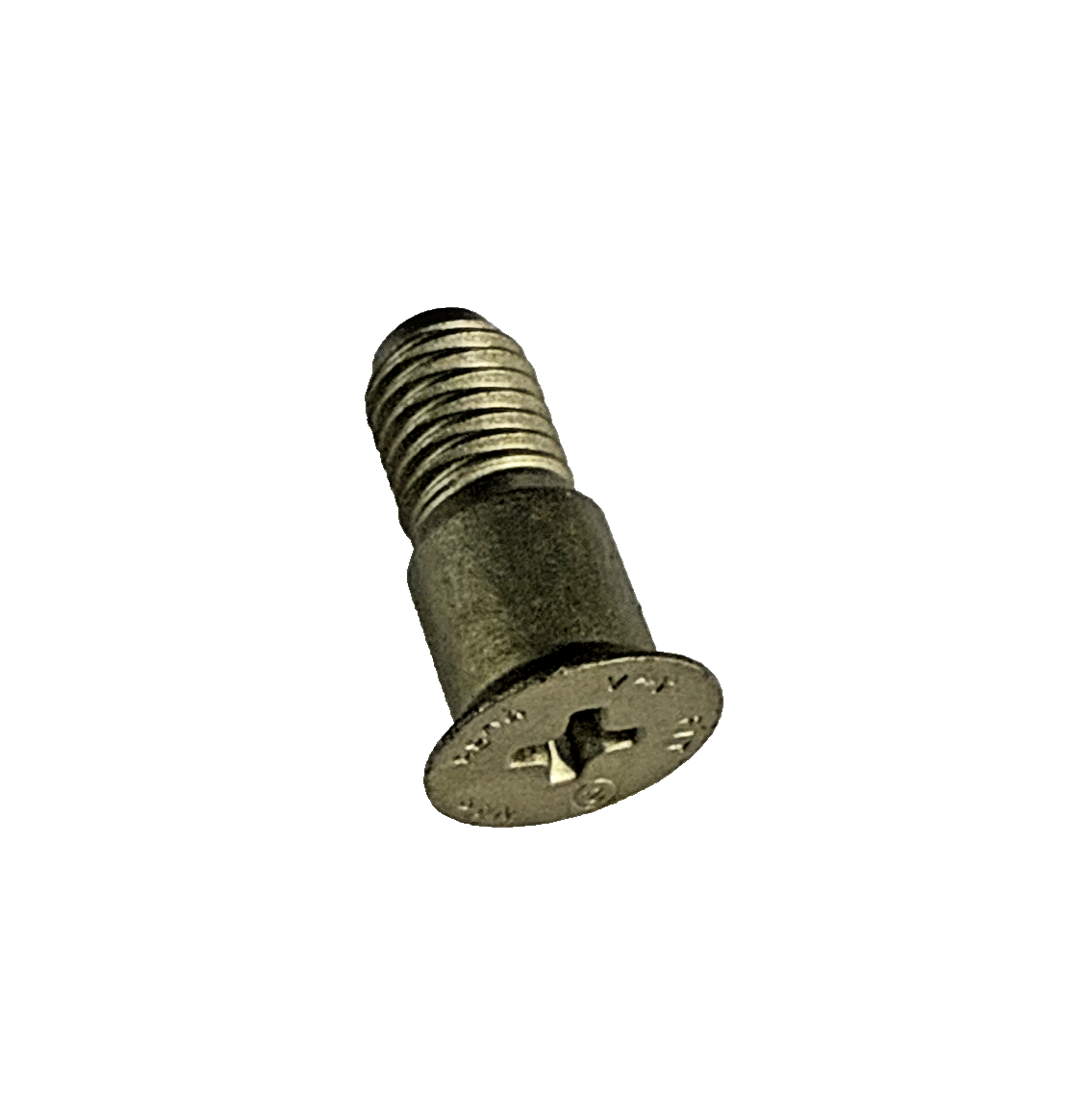

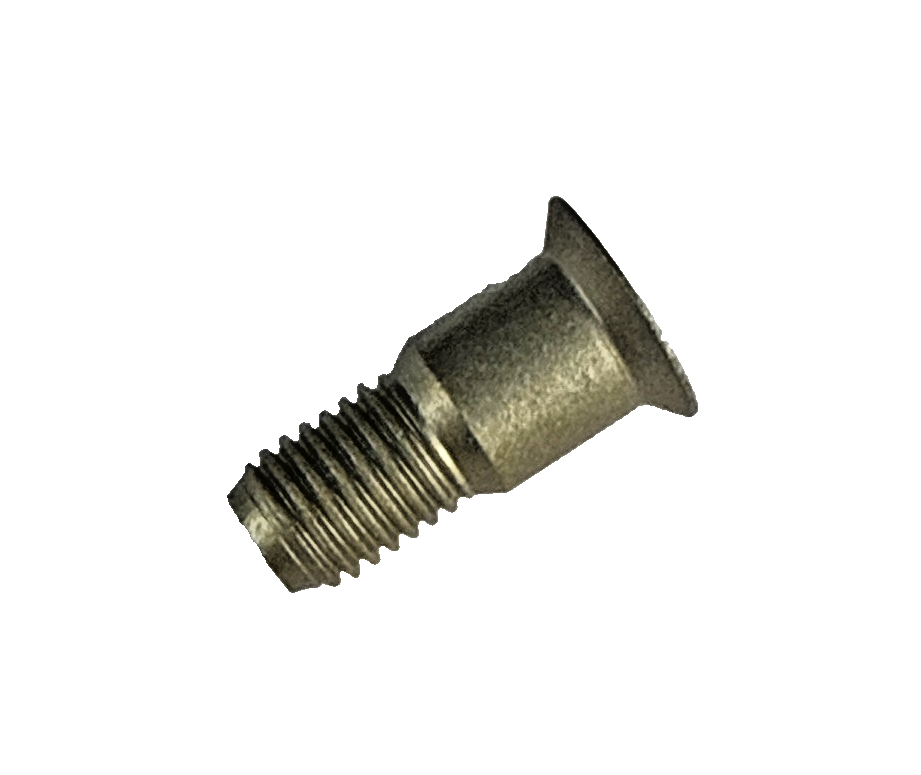

BOEING BOLT NAS8804A5Y NEW OEM NAS8804A5Y
$22.50 USD
/
Shipping calculated at checkout.
1 in stock
Brand: Boeing
Warranty: 30 day
Manufacturer Part Number: NAS8804A5Y
Compatible Model: NAS8804A5Y
Thread Class:
3a
Thread Direction:
Right-hand
Thread Length:
0.425 inches nominal
Fastener Length:
0.722 inches minimum and 0.752 inches maximum
Head Style:
Dished hexagon
Head Height:
0.125 inches minimum and 0.140 inches maximum
Width Between Flats:
0.429 inches minimum and 0.439 inches maximum
Grip Diameter:
0.2485 inches minimum and 0.2495 inches maximum
Thread Diameter:
0.250 inches
Grip Length:
0.302 inches minimum and 0.322 inches maximum
Features Provided:
Finished head
Thready Qty Per Inch (tpi):
28
Min. Tensile Strength (psi):
160000 pounds per square inch
Surface Finish:
32.0 microinches bearing surface of head
Surface Finish:
32.0 microinches grip
Surface Finish:
32.0 microinches threads
Special Features:
Paint threads only rer
Color:
Red threads
Material:
Titanium alloy uns r56400 overall
Material Specification:
Ams 4928 assn std single material response overall or ams 4967 assn std single material response overall
Surface Treatment:
Aluminum overall
