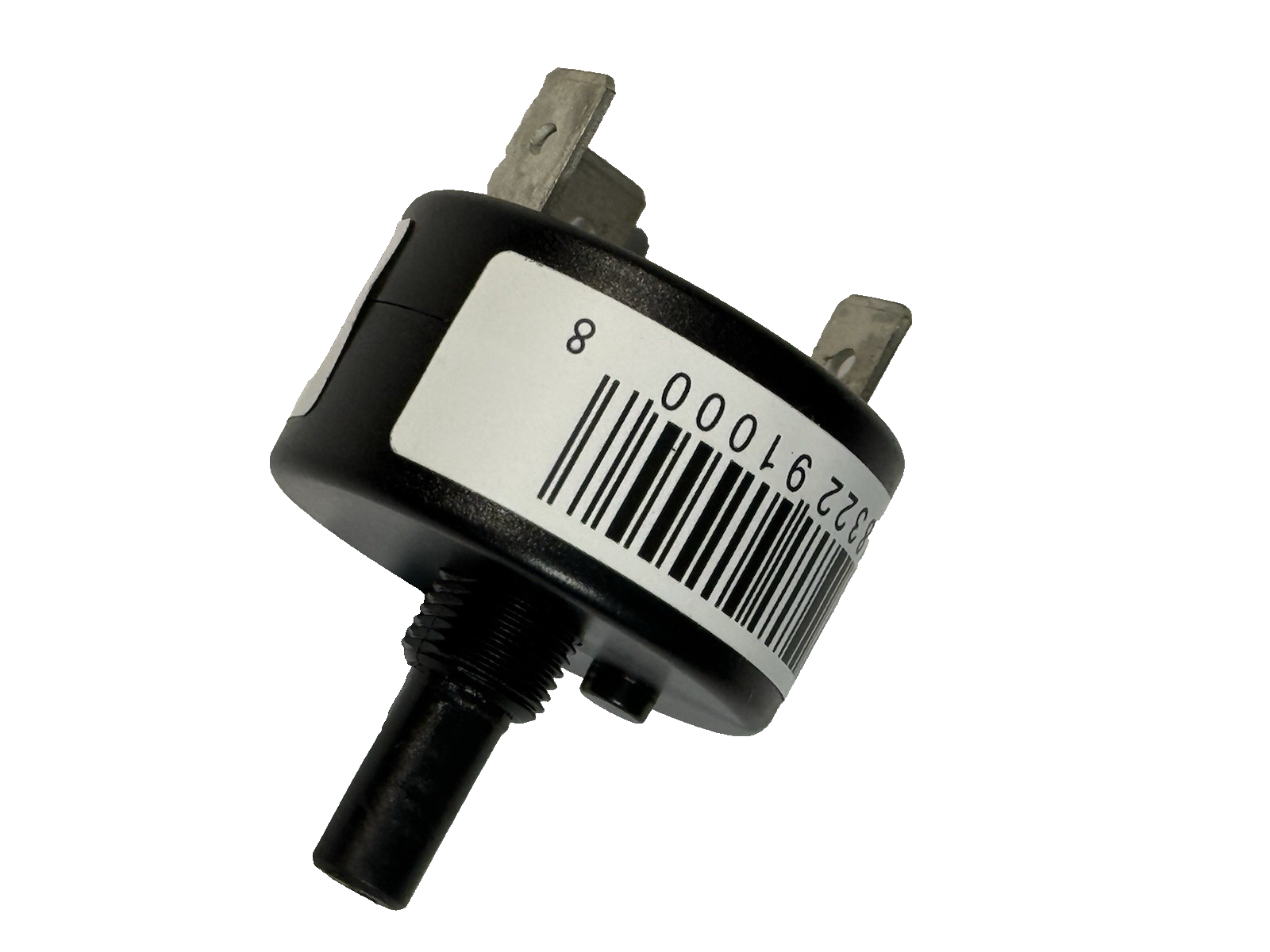

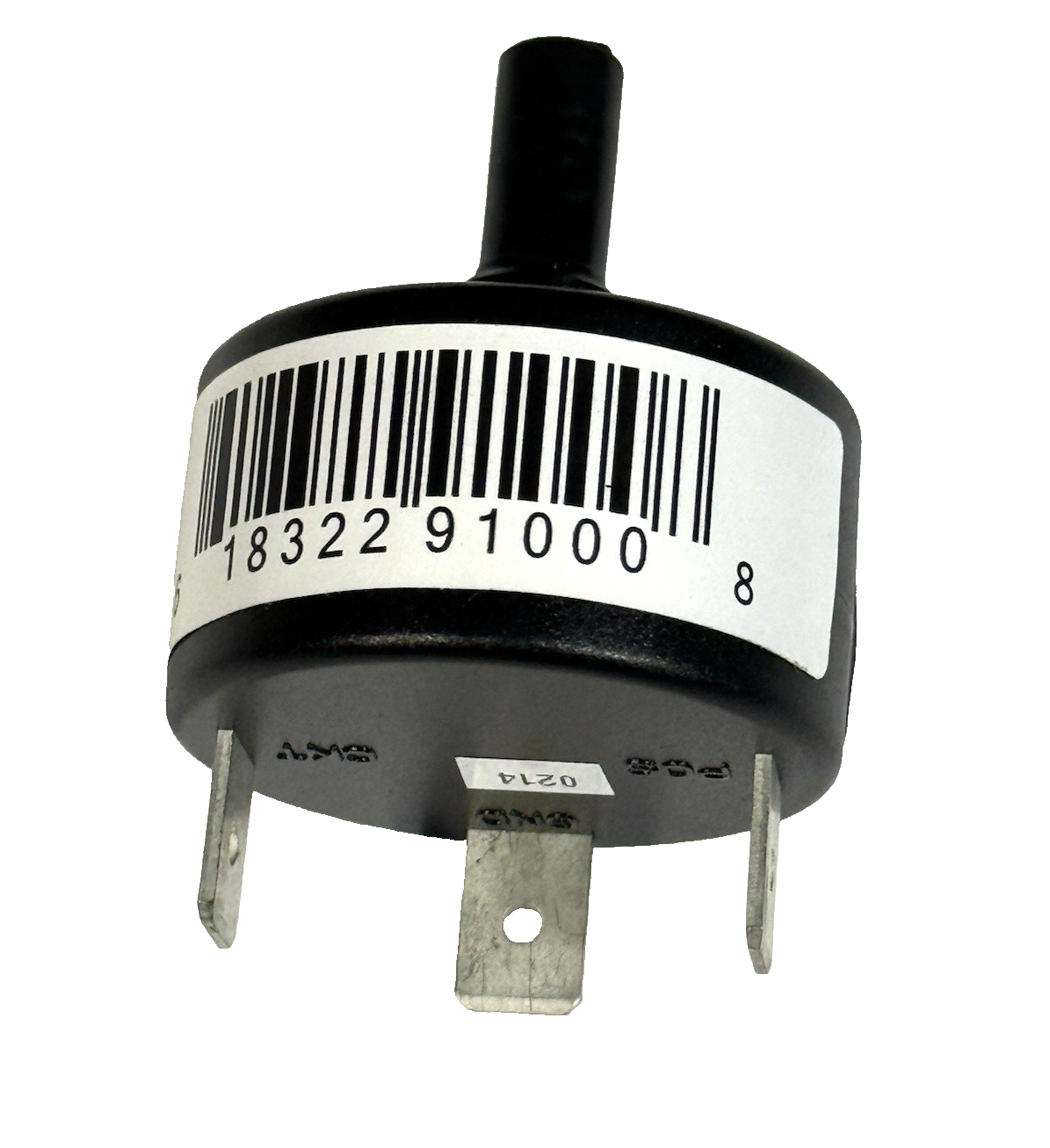

9100-001-A MaxDim Aircraft Dimmer Control Unit

Brand: Max Dim

Warranty: 30 days

Compatible Make: Piper Beechcraft Cessna

Manufacturer Part Number: 9100-001-A

FEATURES

• Single channel MaxDim PWM dimmer with spade or ring terminals
• Controls incandescent, LED, and electroluminescent lighting
• Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
• Approved as AMOC for Cessna AD 93-24-15
• Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
• STC/PMA approved
• RTCA/DO-160E Section 21 RFE Qualified

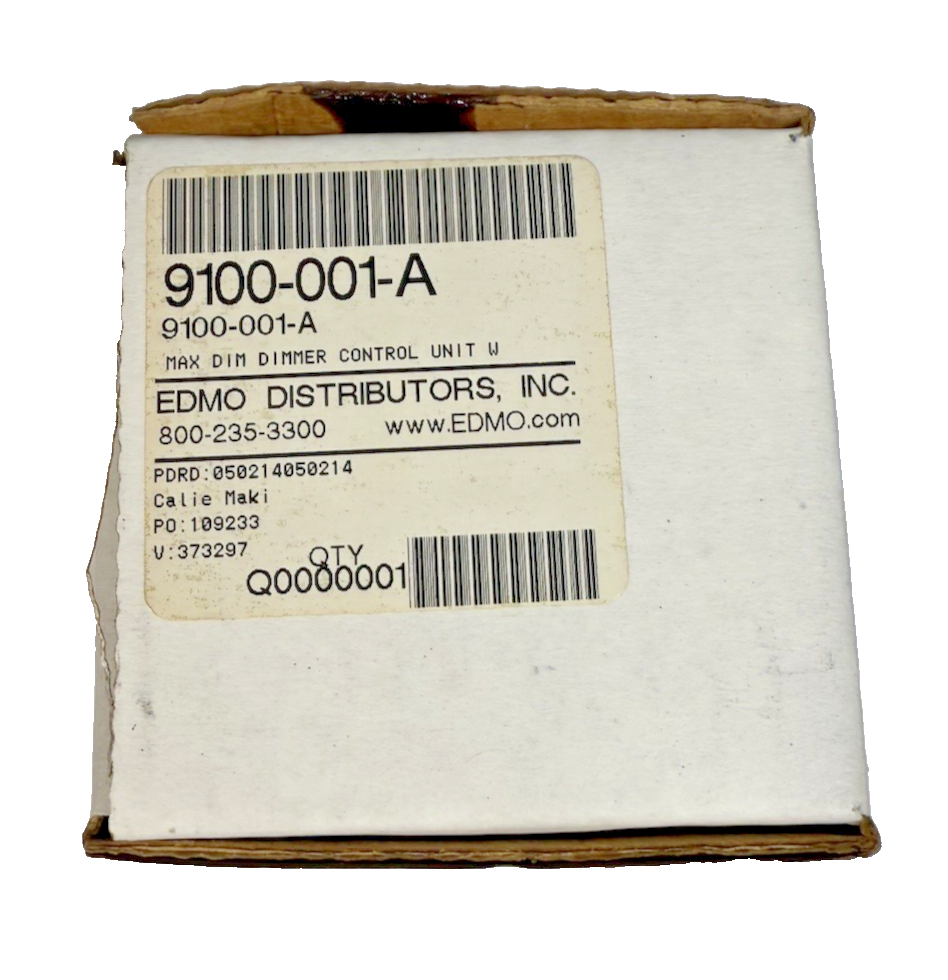

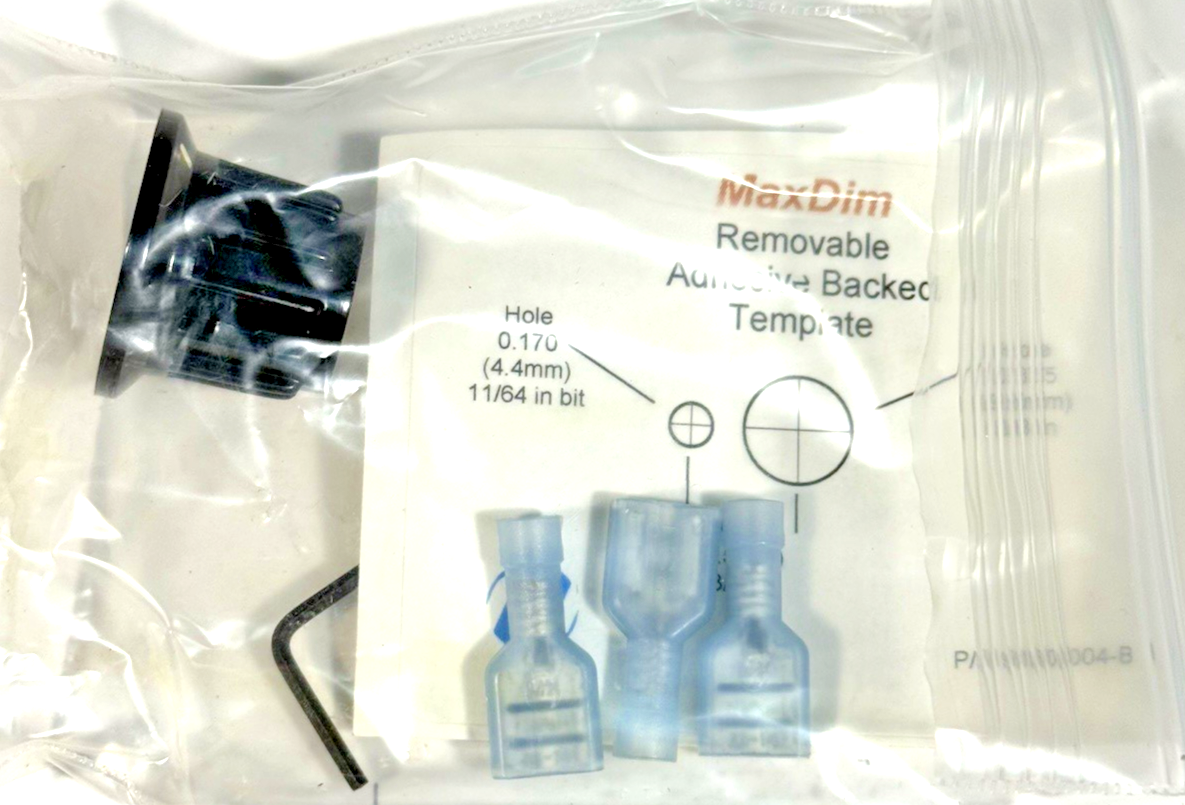

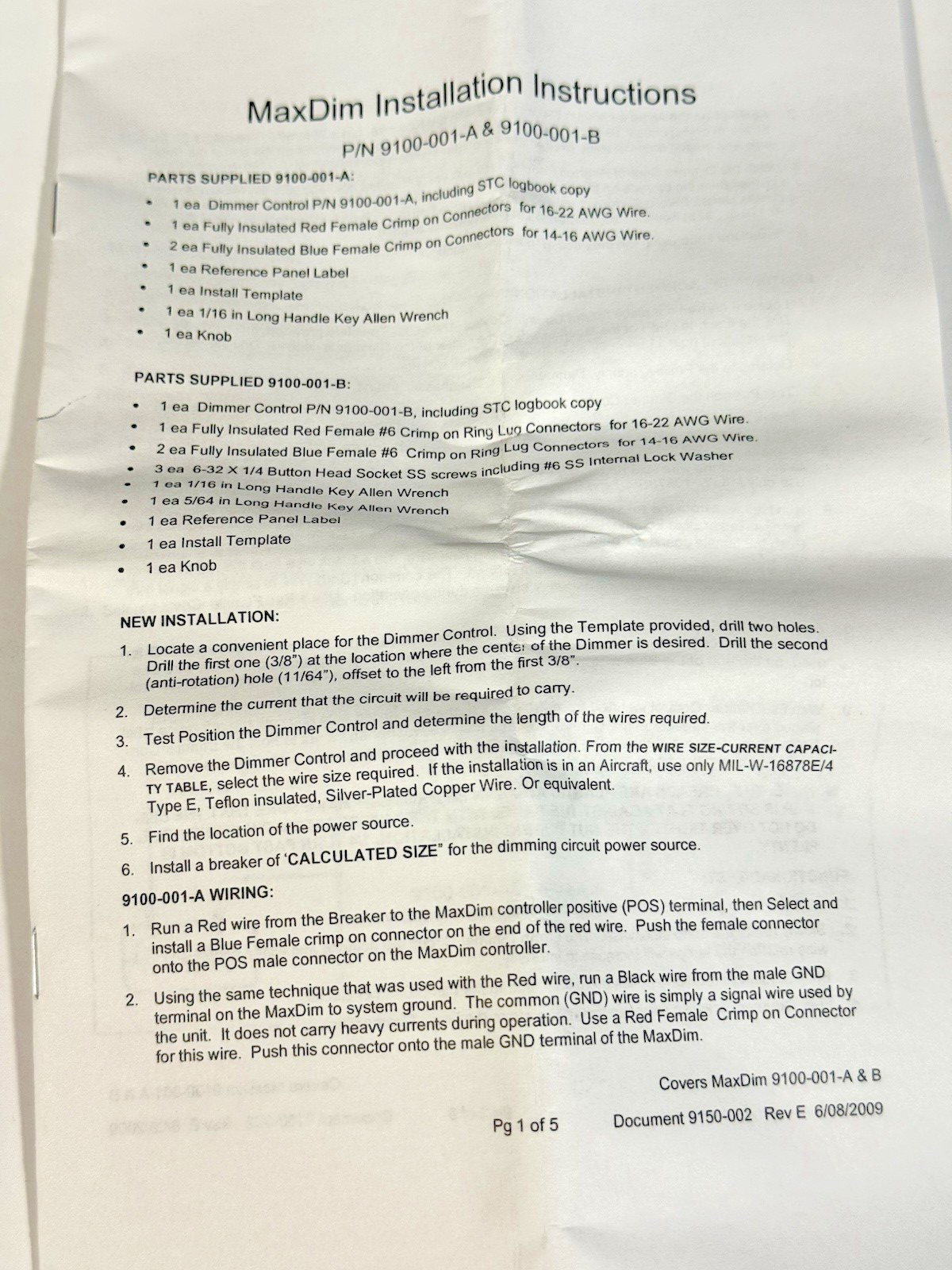

• Comes with MaxDim unit, installation instructions, spade or ring terminals, placard, installation template, and knob
• Made in the USA

• SPECIFICATIONS

  voltage range:	12 to 35 VDC	Weight:	.58 once (16.6g)
  Temperature Range:	(Storage) -40° to +100°C , (Operating) -30° to +65°C	MAXIMUM Current:	12.5 A per Channel
  output channels:	1	internal temp protected:	+85°C
  INTERNAL TEMP:	@12.5A + 15  C on ambient	DO-160E TESTING:	SEC. 21: RFE (EMI)
