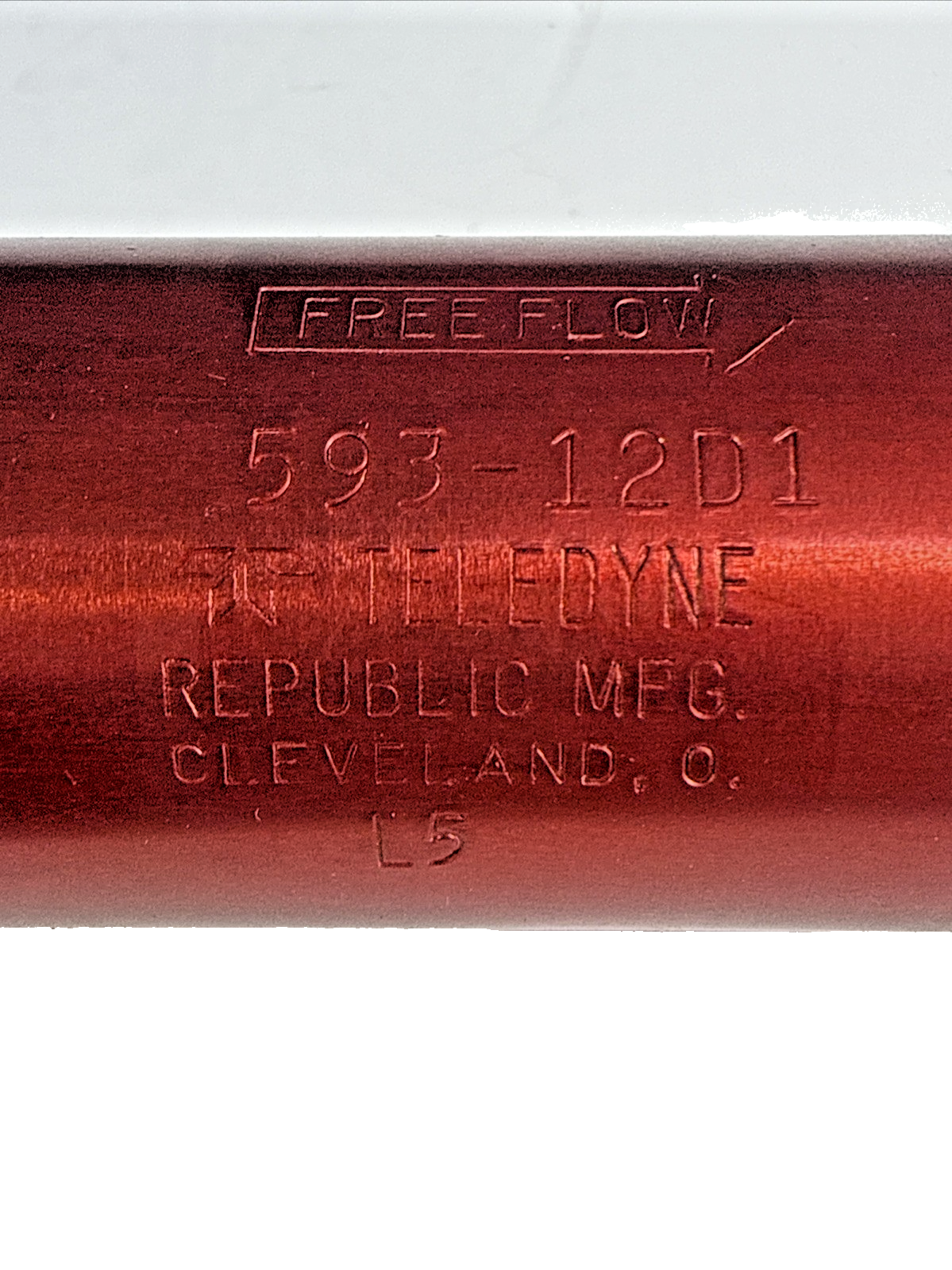

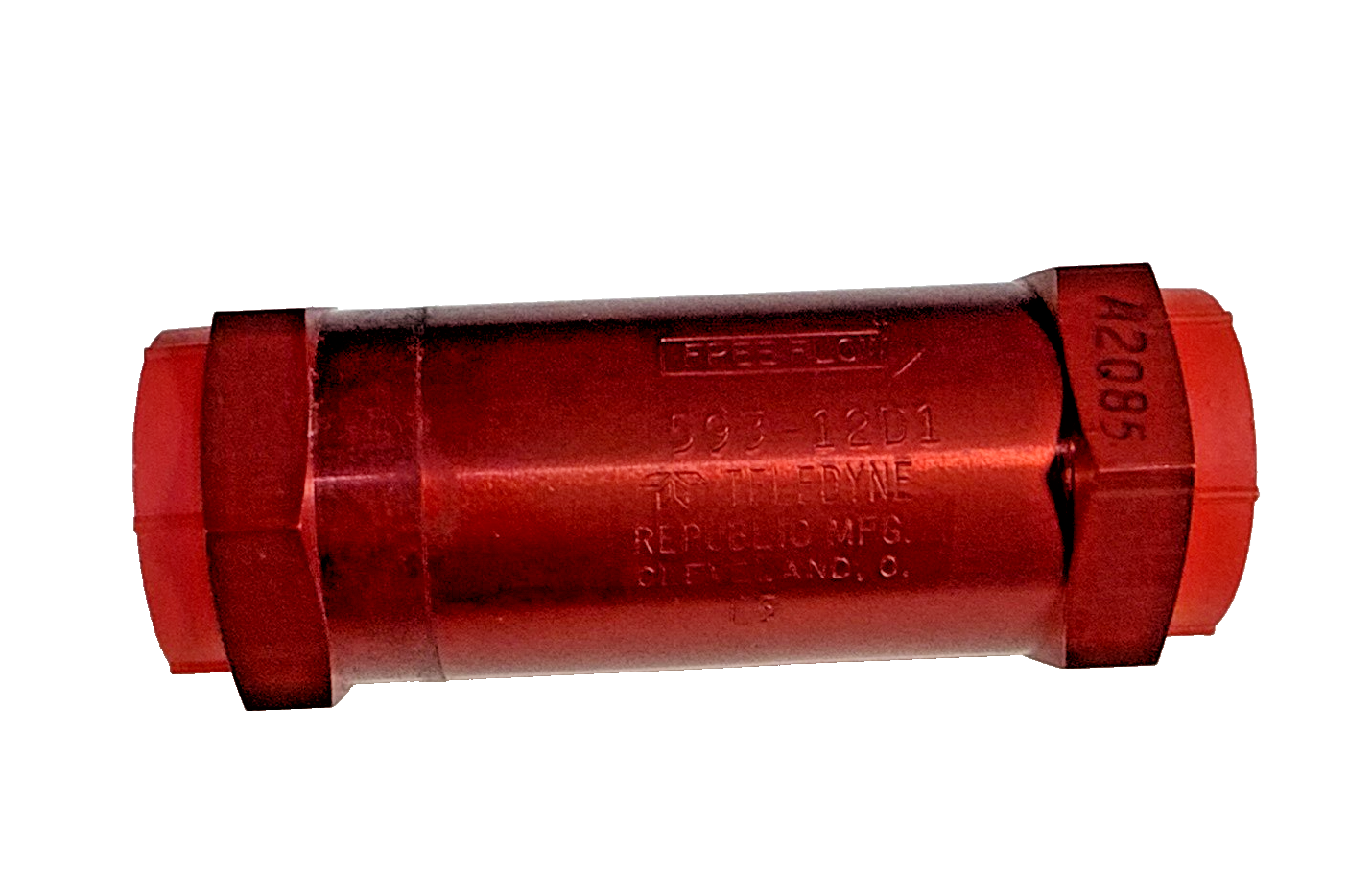

593-12D1 Parker Aircraft Swing Check Valve Teledyne NEW

Condition: New other (see details)

Condition Description:

Brand: teledyne

Warranty: 30 day

Manufacturer Part Number: 593-12D1

Compatible Model: republic

Specifications Features • Zero leakage (less than 1 drop per minute). • Full flow with low opening pressure. • Improved hinge controls. • Mounts in any position. • MS valves meet the following specifications: MS28882A or B, MS28884A or B (see chart). Service App. Hydraulic or Pneumatic Maximum Working: Sizes 4 to 16 - 24.2 Bar (350 PSI) Operating Sizes 20 to 32 - 20.7 Bar (300 PSI) Pressure Cracking: 8 ", 0.02 Bar (0.29 PSI) water max. Operating Code 1 -55°C to +71°C (-67°F to +160°F) Temperature Internal Zero Leakage Sizes NPT: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2" IST, FLD: 4", 6", 8", 10", 12", 16" Mounting In-line, mounts in any position
